MAP Sensor Placement 2007.5-2016 Dodge

The MAP sensor on the 2007.5-2016 Dodge with 6.7L Cummins Engine is located on the intake horn. The intake horn is on the driver's side with the MAP sensor placed on the side of the intake horn closest to the firewall.

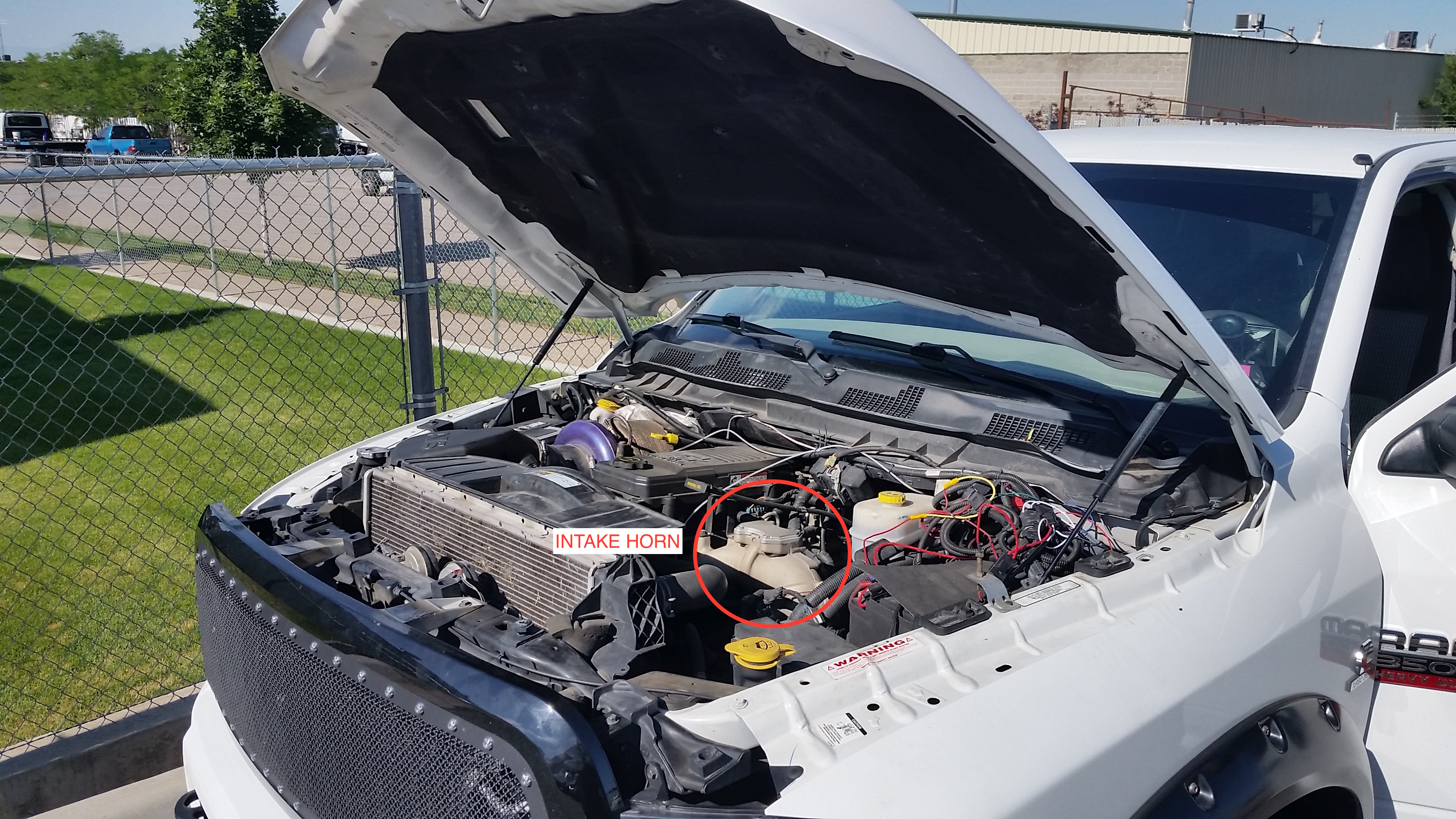

The following images show the placement of the MAP and boost fooler. The following picture shows the engine bay with the intake horn highlighted.


The following picture shows the intake horn from the driver's side of the truck.

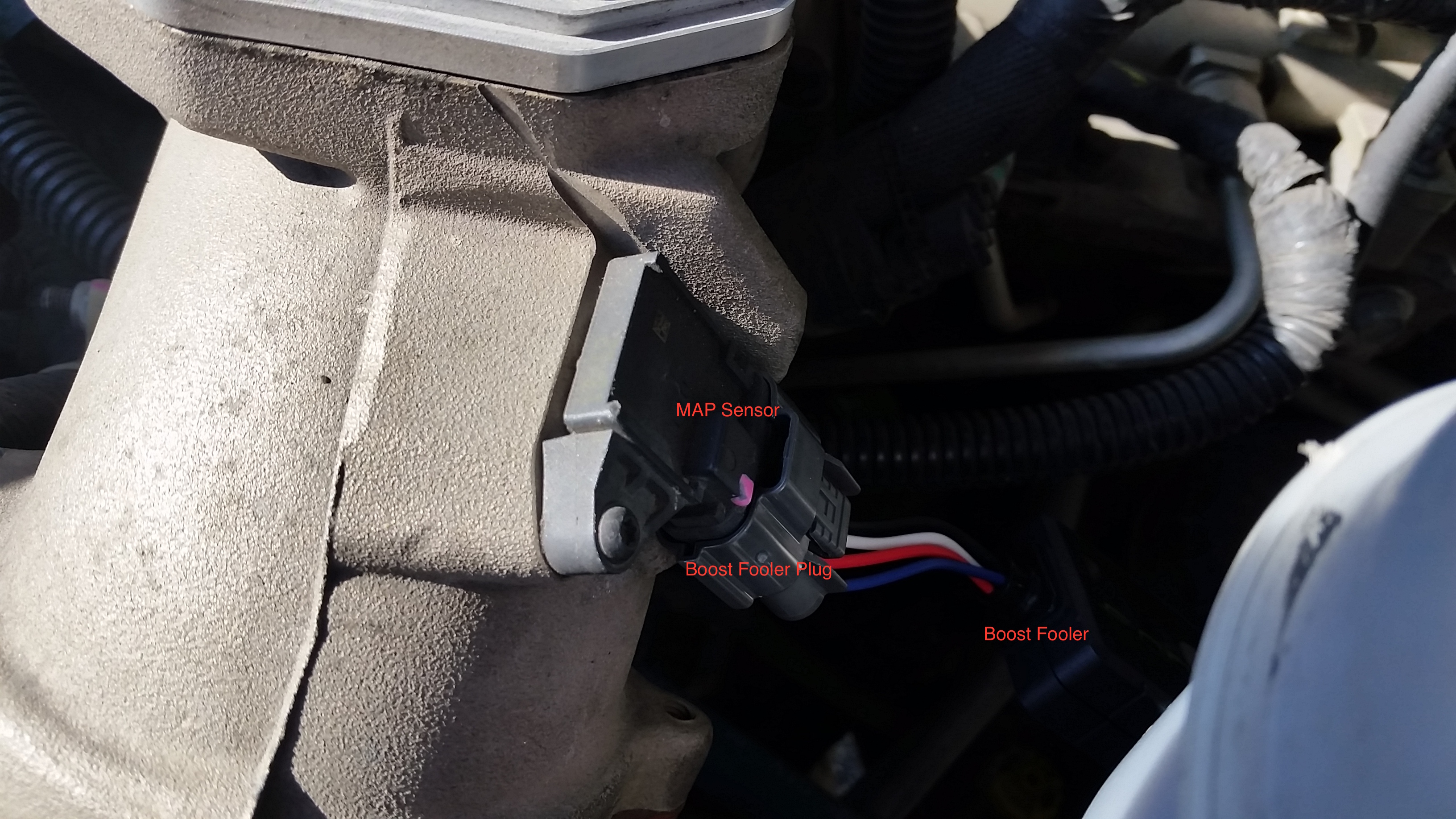

The following picture shows the MAP sensor and the boost fooler plugged into the MAP sensor:


Make sure that the boost fooler pluges into both the MAP sensor and the factory harness otherwise the truck with throw a Check Engine Light (CEL).
