Purchasing Used Adrenaline

If you are looking online for a used Adrenaline, here are some things to keep in mind. First, there are a few boards out there that are damaged or no longer work properly - be aware. To be safe, get a new one, it comes with a warranty. If you would still like to buy a used Adrenaline then follow this guide.

Remember, we can always test and update any existing Adrenaline to make sure that it is still working properly. Please remember to follow the instructions in the description of the test and tune when sending in your module. If you need any accessories or sensors to get the full potential out of your Adrenaline, you can find all of them in our Accessories page.



When looking to purchase a used Adrenaline look first for the Adrenaline for your year of truck, that the easiest way to make it work.

ADR1000: 1998.5 -2000 Dodge Cummins with VP44

ADR1001: 2001 Dodge Cummins with VP44

ADR1002: 2002 Dodge Cummins with VP44



Navigate to your type of truck by clicking below:

VP44 Trucks 1998.5-2002 Dodge Cummins





VP44 Trucks

Adrenaline's with an ADR1000, ADR1001 or ADR1002 model numbers are all for the VP44 trucks and will work with the other years of VP44 trucks with a bit of modification. Choose your year of truck from the following list to learn what needs to be done.

1998.5-2000 Dodge Cummins

2001 Dodge Cummins

2002 Dodge Cummins







1998.5-2000 Dodge Cummins:

If you buy an ADR1001 kit or an ADR1002 kit for your 1998.5 to 2000 Dodge Cummins the most obvious piece of equipment you will need to get is the MAP adapter. The map adapter you will need for your truck has a part number of D-7225-2.

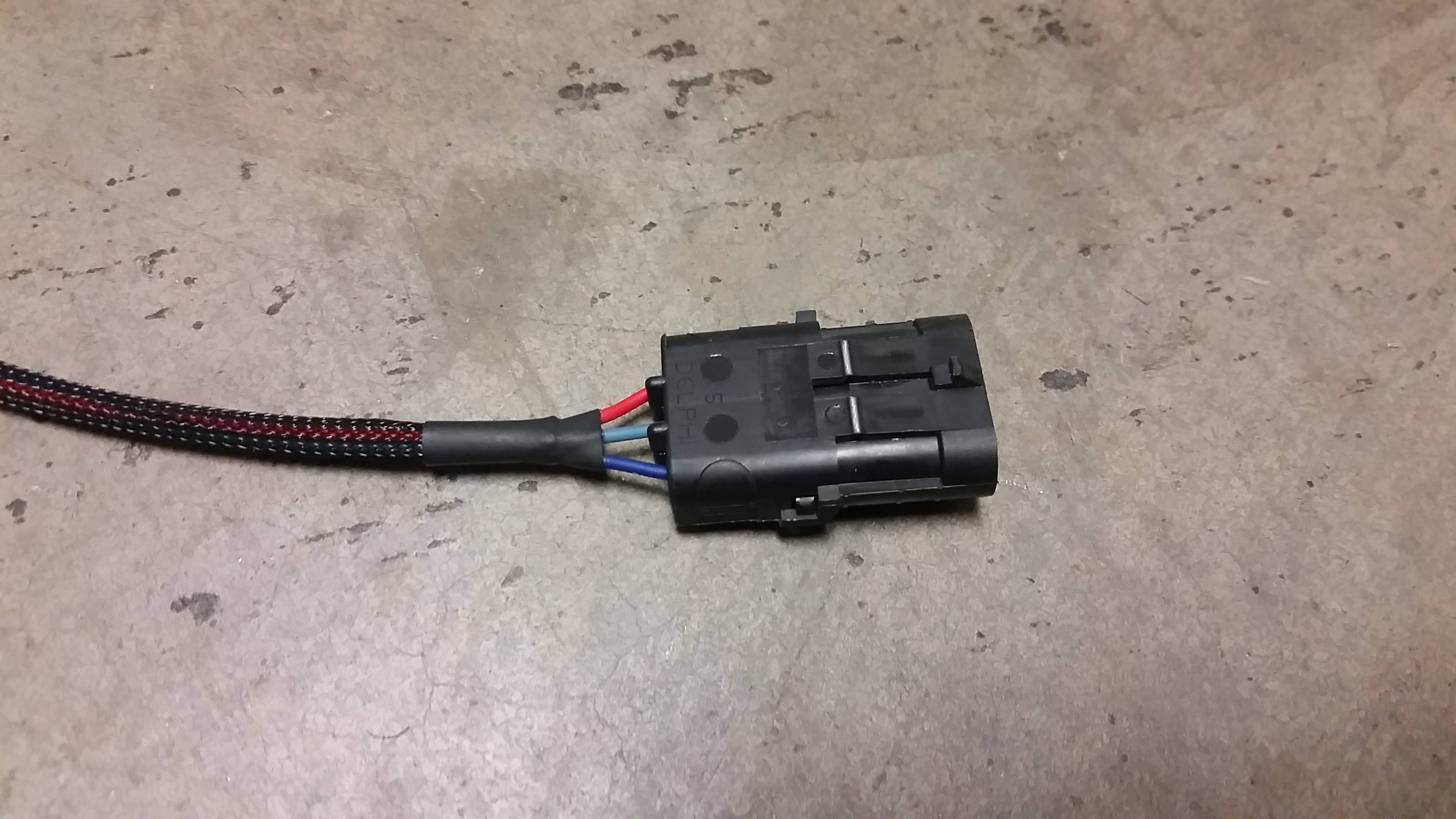

This map sensor adapter will plug in to the main wiring harness into the flat 3-pin Deutsch connector with the red/black, light blue, and dark blue wires that looks like this:

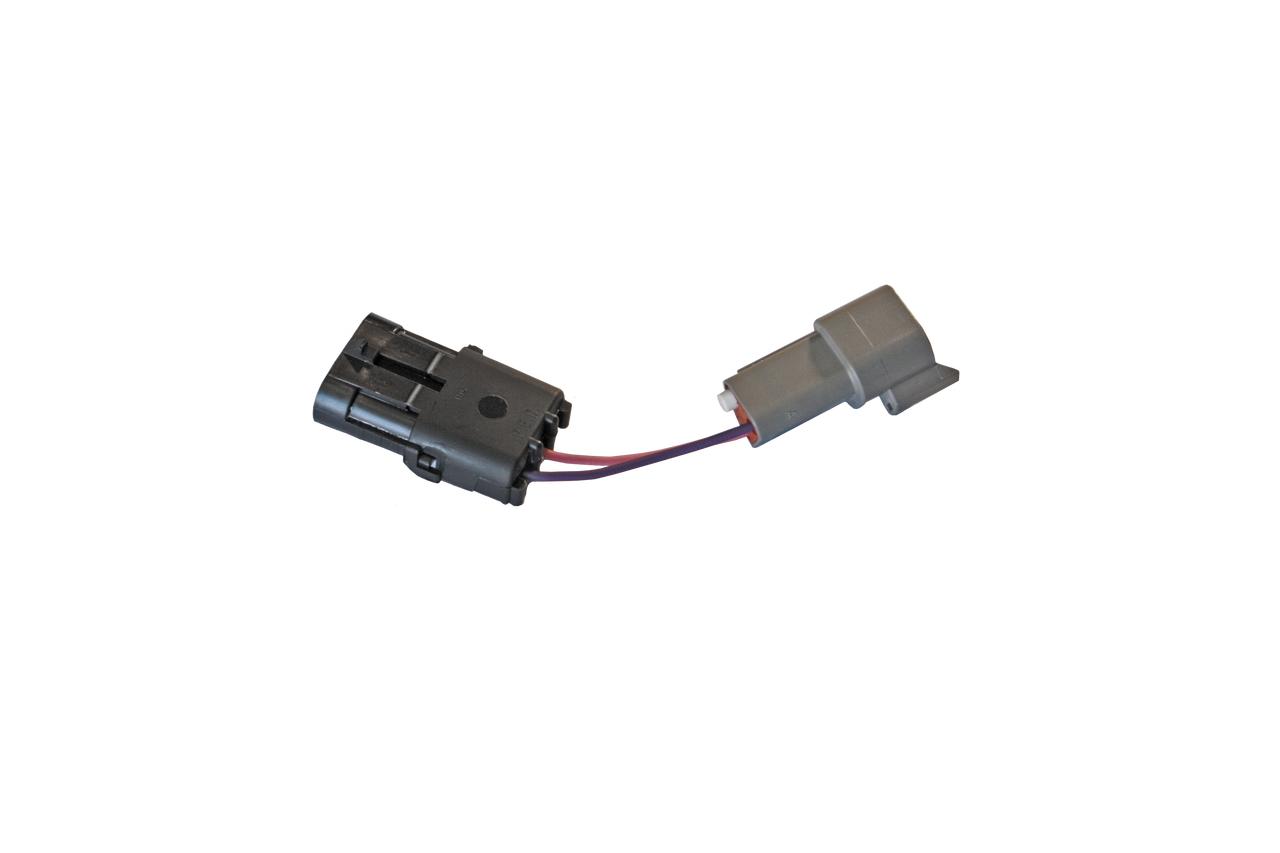

If your truck is a 1998.5 or 1999 you will probably need the data-link adapter as well. Most 2000 trucks do not, however, make sure you know where your data-link connection is and what type it is before you decide you don't need the data-link adapter. The data-link adapter is part number D-7225-4. This data-link adapter will adapt from the flat 3-pin Delphi connector to a triangular 3-pin Deutsch connector. The reverse adapter is used on the XZT.

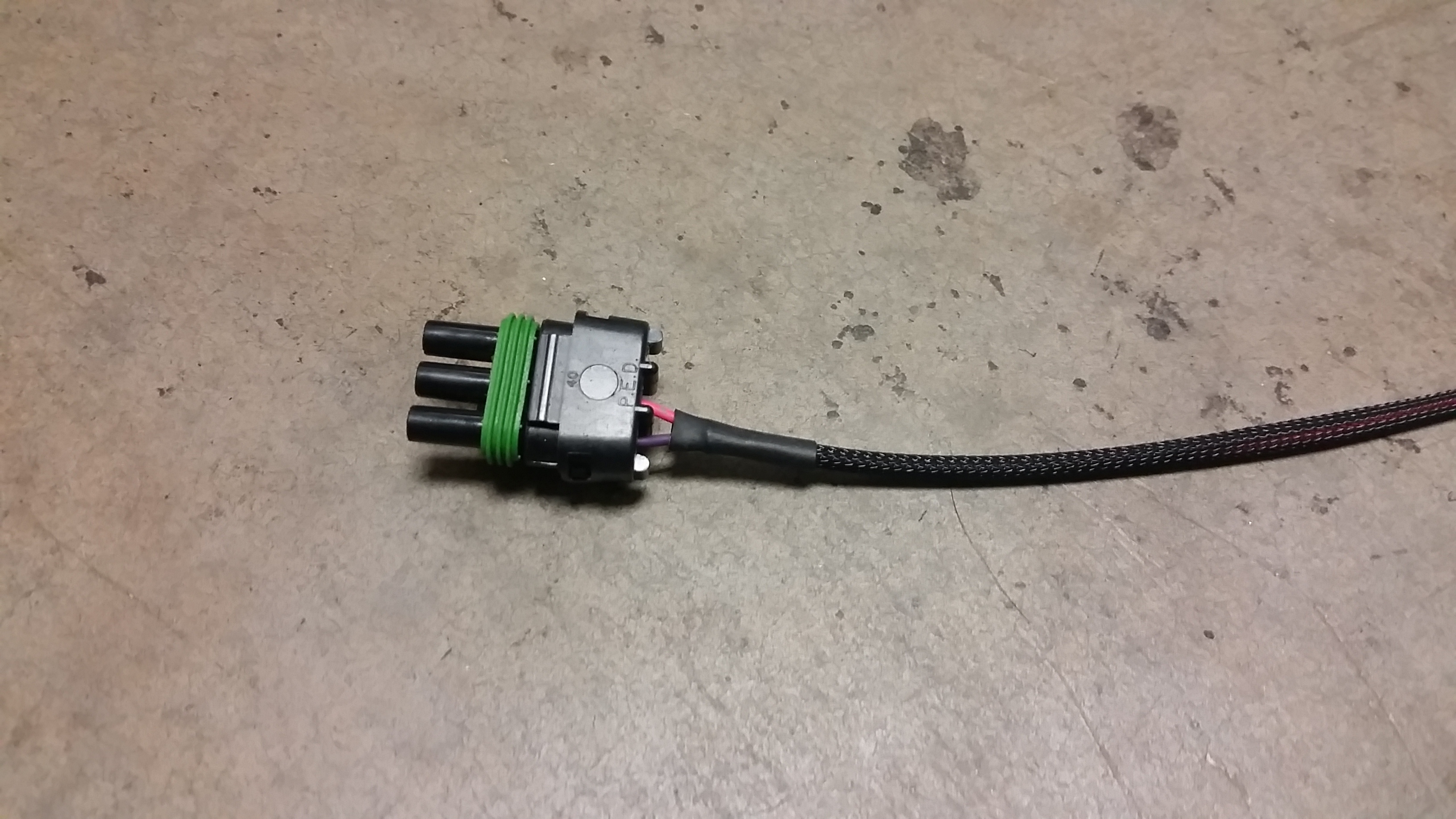

This data-link adapter will plug in to the main wiring harnesses data-link connection to adapt it from the flat 3-pin Delphi connection to the triangular 3-pin Deutsch connector. It will plug into this plug of the main wiring harness:


The last thing that you need to do is to pull a jumper off of the main board. This jumper sets the voltage on the boost fooler to differentiate between the 1998-2000 MAP sensor and the 2001 and 2002 MAP sensors. The 2001 and 2002 MAP sensors both use the same voltage that differs from the 1998.5-2000 MAP sensor.

Remove the jumper completely or place it as shown below:








2001 Dodge Cummins

If you purchase an ADR1000 kit or ADR1002 kit for your 2001 Dodge Cummins, you will need the right MAP adapter. The MAP adapter's part number is D-7225-3.


This map sensor adapter will plug in to the main wiring harness into the flat 3-pin Deutsch connector with the red/black, light blue, and dark blue wires that looks like this:

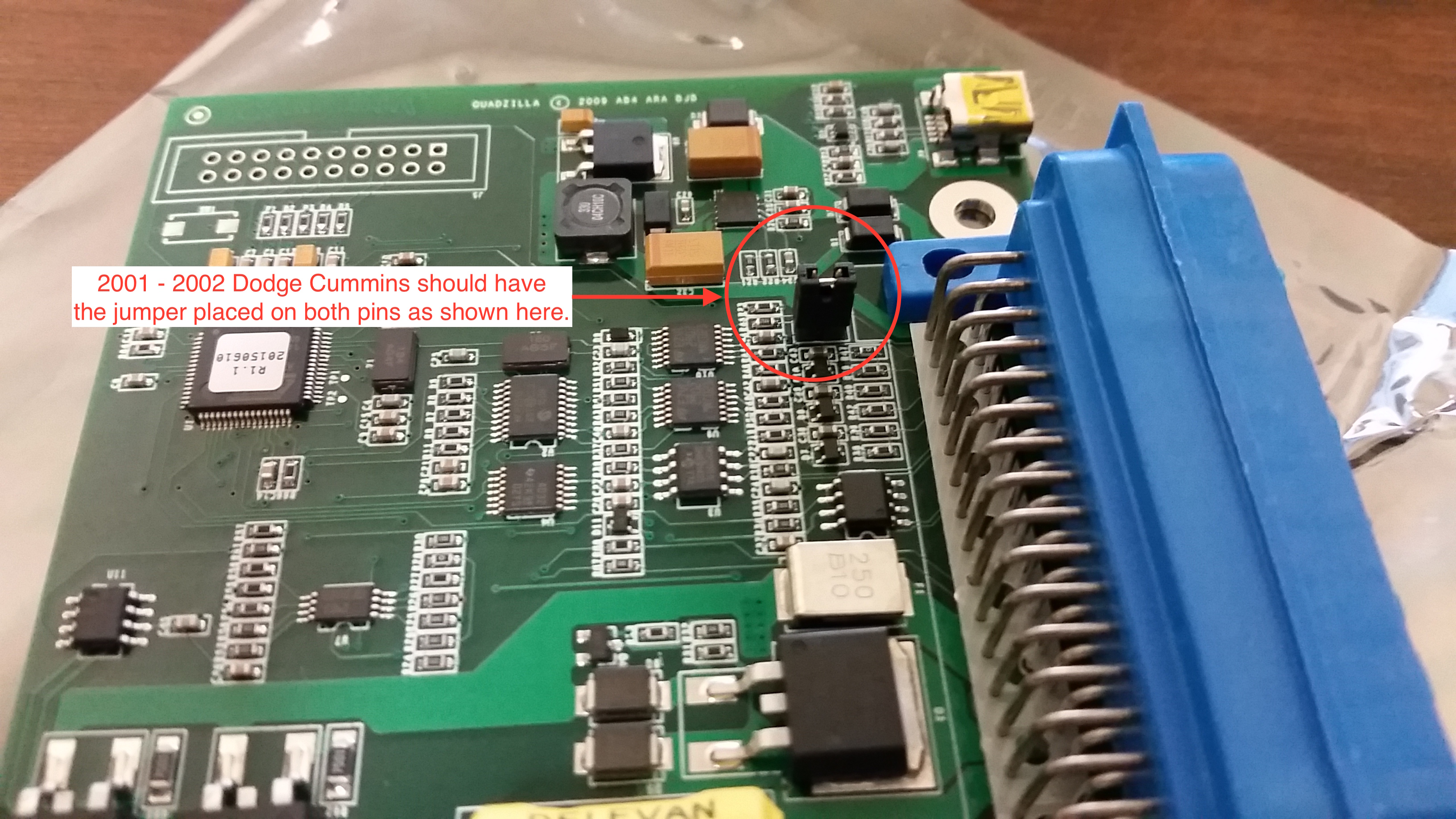

You will also need to make sure that the jumper is in place on the main board. If your Adrenaline main board is missing its jumper, you can request one when purchasing the MAP adapter directly from Quadzilla and we will include it in the package. The jumper should be placed on both pins as shown below:








2002 Dodge Cummins

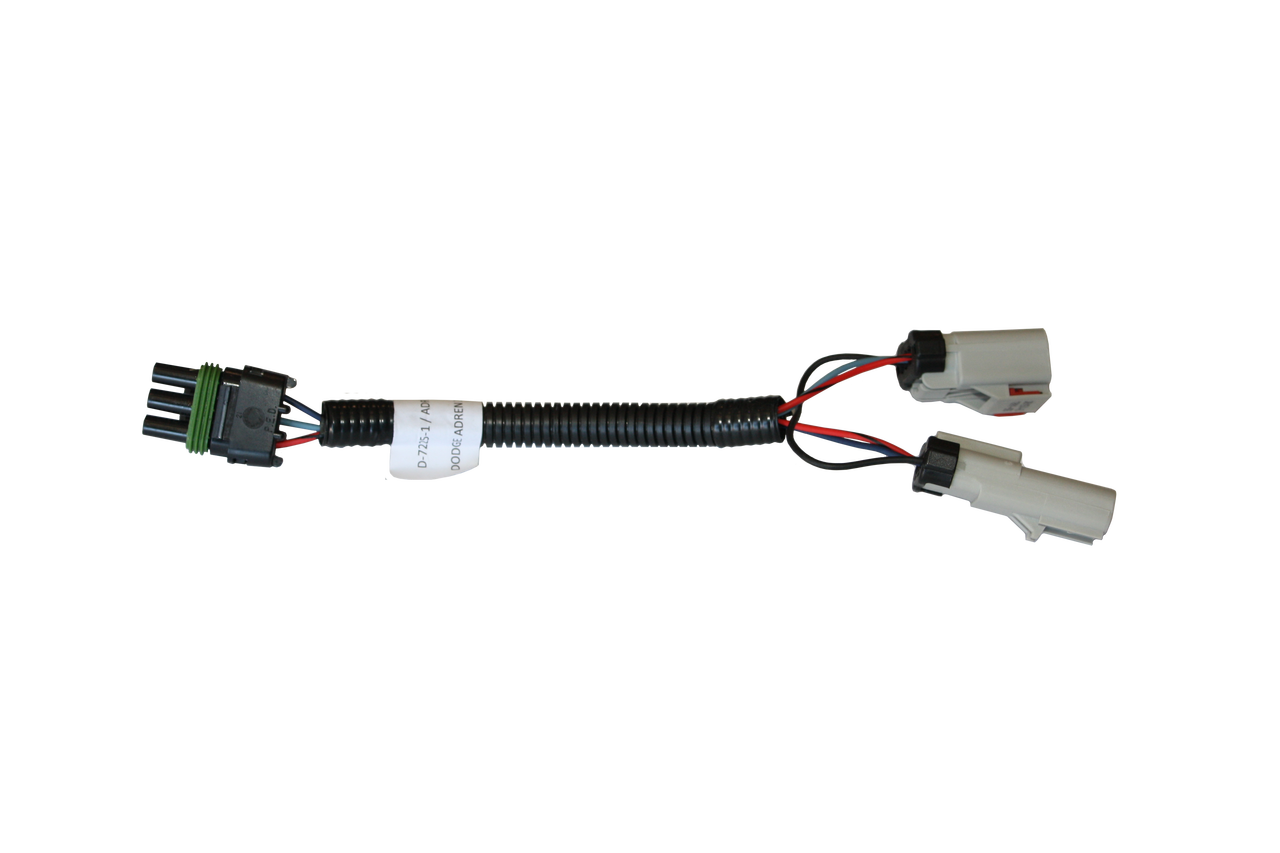

If you purchase a ADR1000 kit or ADR1001 kit for your 2002 Dodge Cummins, you will need to change out the MAP adapter for the right map adapter. The correct MAP adapter's part number is D-7225-1.


This map sensor adapter will plug in to the main wiring harness into the flat 3-pin Deutsch connector with the red/black, light blue, and dark blue wires that looks like this:




You will also need to make sure that the jumper is in place on the main board. If your Adrenaline main board is missing its jumper, you can request one when purchasing the MAP adapter directly from Quadzilla and we will include it in the package. The jumper should be placed on both pins as shown below:
