Product Description
iQuad+ is required to be able to custom tune!
Click here for custom tuning
Click here to add a Fuel Pressure Sensor & a tapped fuel port.
Click here to add a EGT probe installation kit

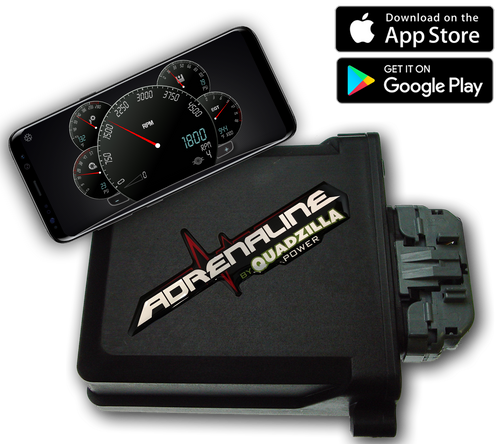

Adrenaline Engine Control System
2001-2002 Dodge 5.9L Cummins
Features
• |
11 On the Fly Power Levels |
• |
Rugged Weatherproof Enclosure |
• | 180 RWHP Gains | • | Easy Access USB port |
• | 420 Ft Lbs Torque Gain | • | Plug and Play Installation |
• | Max Mileage Tuning Level | • |
Built in Boost Fooler |
• | Best Towing Performance Available | • |
Built in TurboGuard |
• | Unparalled Throttle Response | • |
Built in PowerIdle |
• |
Built in EGT, Boost, Transmission |
• |
Built in Guardian De-fueling Software |
*Screen not included
*Be sure to verify MAP sensor connection to determine what year kit you need to purchase,
Quadzilla Power is not responsible for incorrect purchase.
24v VP44 (Dodge 2001-2002) Tuner Options
Monitor | Custom Tuning | On the Fly Power Level |
Multiple Tunes? | VP44 Tap |
Built in Boost Fooler |
Power Gains | #Parameters able to be monitored at once | RPM Limit | Price | |
Adrenaline iQuad+ | Smart Device | Yes | Yes | Yes | Yes | Yes | 180 RWHP
420 Ft-Lbs Torque |
10/19 | Up to 3700 | $799.99 |
Adrenaline w/ Control Pod | Control Pod | N/A | Yes | No | Yes | Yes | 180 RWHP
420 Ft-Lbs Torque |
1/4 | 3200 | $699.99 |
XZT+ | N/A | N/A | Yes | No | No | Yes | 65 RWHP
200 Ft-Lbs Torque |
0 | 3200 |
$379.99 |
Included in the Box:
- Adrenaline Module
- Control Module (Control Pod/iQuad+)
- Main Harness
- Map Adapter
- Data Link Adapter (98.5-00 only)
- EGT Probe
- Posi-tap (for VP44 tap)
- Zip Ties
- Transmission Temp Sensor
- Alcohol Wipe
- Dual Lock Adhesive Fastener
- Quadzilla Decal
- **Fuel Pressure Sensor and Fuel Tap sold separately**
The all new iQuad+ now allows you to connect to both iOS and Android devices with one unit!
The Adrenaline is the standard in diesel performance for VP44 powered Cummins trucks.
That is even more true today with the new V2 tuning for Adrenaline coming standard on all Adrenaline units. The latest V2 custom tuning increases the number of tuning variables and therefor the amount of control that you have over the tuning in your truck. V2 custom tuning for Adrenaline gives you more fine control over the amount of fuel that you command at every pound of boost and control over the amount of timing in each RPM range. You pick when the wire tap fueling kicks in and how hard it kicks in. You can also take advantage of the "valet mode" power level (PL 01) to decrease fueling levels below stock values. New V2 power levels are as follows:
PL00: Stock with Boost Fooling
PL01: Valet mode (50% Less Than Stock Power)
PL02: Max Mileage (Timing Only)
PL03: 60 HP (Can Bus Only)
PL04: 75 HP Gain (Can Bus + Wire Tap)
PL05: 95 HP Gain
PL06: 110 HP Gain
PL07: 125 HP Gain
PL08: 140 HP Gain
PL09: 160 HP Gain
PL10: 180 HP Gain
The Adrenaline is the MOST POWERFUL plug and play module out of the box found anywhere. With gains up to 180 rwhp* and 420 ft lbs of torque,* the Adrenaline stands alone. This power is made through a combination of CAN Bus fueling, Direct VP44 fueling control, injection timing and boost control.
The heart of the Adrenaline module is a technologically superior 32 bit processor. Having more processing horsepower lets us do things other modules only wish they could do. The Adrenaline uses extremely advanced 4 axis tuning maps to insure you have power on demand. Monitoring RPM, Throttle Position, Boost, and Load % all at the same time allows us to provide the smoothest, yet most aggressive, fueling curves found anywhere.
The Adrenaline module is available with several control options allowing you to monitor EGT, Boost, and Transmission or Oil Temperature. All of the necessary parts to monitor the above mentioned parameters are included with each Adrenaline module!
Fuel Economy
While power is great, at today’s fuel prices, fuel economy is just as important. Realizing this we built in our industry first Max Mileage tuning into the Adrenaline. That’s right, you can have your cake and eat it too! With just a push of a button you can have the best fuel economy tuning available. Another push of the button will shred your tires and leave you short of breath. Where else can you find such versatility?
Engine Protection
We have always stated that power is nothing without Control. The Adrenaline is the most powerful and SAFEST module available.
Using our exclusive Guardian de-fueling software, and the processing power we have at hand, we are able to precisely control your EGT’s without robbing you of all your new found power. You can maintain safe EGTs and still make tons of power. The Quadzilla Adrenaline is in a league of its own!
Another feature of the Adrenaline is our TurboGuard cooldown feature. This allows the user to turn the truck off and remove the key from the ignition while keeping the truck running. It is very important to allow your engine and your turbo to cool down before shutting it off. This allows the oil to continue to lubricate the engine and turbo while it is cooling off. The TurboGuard can be set for time or can be EGT based.
Quadzilla also offers PowerIdle feature. This high idle is simply a smart feature that knows when to raise the idle to allow for consistent engine temperature and proper engine lubrication during extended idle periods. This is also a handy feature for those cold mornings when you need your truck to warm up quickly and maintain engine temperature while at idle, or those that demand extra electrical power to run accessories. PowerIdle also helps increase efficiency of your AC system or heater.
User Interface
With all of these options at hand, we had to give the user plenty of input. We could make you buy more expensive, add-on parts to get the full benefits from the Adrenaline but, we aren’t like those other guys. Instead, we developed yet another industry first: the FastFlash USB software (Under development to update compatability with current Windows operating systems). This software is installed on all Adrenaline modules and allows you to download an unlimited number of tuning and feature options. Maybe you don’t want a Turbo Timer or High Idle. Simply download your desired tuning as well as your desired features and load it into your Adrenaline in a matter of seconds.
The Adrenaline has raised the bar in the industry of performance.
Get your pulse pounding today with a Quadzilla Adrenaline module.
Your new Android tablet can be mounted in a variety of ways. From in-dash to much simpler ways. Here are a few of the easiest ways to mount your tablet.
http://www.walmart.com/search/?query=tablet%20mount%20&cat_id=3944
*CARB NOTICE: QUADZILLA TUNERS AND ELECTRONICS ARE NOT FOR SALE OR USE IN CALIFORNIA AND OTHER CARB STATES.
Products purchased under Minimum Advertised Price (MAP) will not be eligible for warranty through Quadzilla Power, LLC.
